The training board installation test is used for measurements in the field of electrical protection and installation technology.
- Practical measurements with standard VDE test equipment
- For checking protective measures according to VDE 0100
- For measurements in 1- and 3-phase mains
- With simulation of insulation and loop resistance
- Simulation of frequently occurring errors in protection and installation technology
- Ideally suited for testing purposes
- Measurement and simulation of the earth resistance
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.

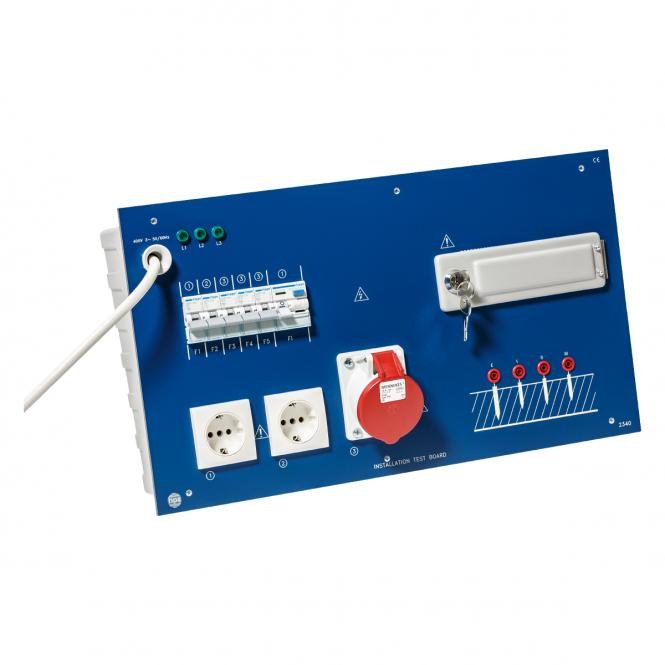

On the front side of the training board there are two sockets with earthing contact for the measurement of
- Conductor failure
- Loop impedance
- Insulation resistance
- Tripping characteristics of an RCD circuit breaker
An additional three-phase current connection (Cekon socket) enables the measurement of the rotating field.
Further installation components integrated in the front panel are
- 1 RCD circuit breaker: 1-phase; IN = 25 A; IF = 0.03 A
- 2 circuit breakers: 6 A
- 3 circuit breakers: 16 A
With the training board installation test, the most frequently occurring faults in protection and installation technology can also be simulated. For this purpose, there is a plug-in panel with 2 mm sockets on the front panel. By connecting the sockets, individual but also combined faults can be simulated and loop and insulation resistance can be measured. A lockable protective cover prevents unauthorised access to the plug-in panel; this also makes the training board installation test very suitable for testing purposes.
To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration purposes.
- Electronics technician for industrial engineering
- Electronics technician for buildings and infrastructure systems
- Electronics technician for energy and building services engineering
- Electrical systems technician
- Industrial electrician
- Practical measurement with standard VDE test equipment
- Inspection of protective measures according to VDE 0100
- Measurements in 1- and 3-phase network
- Simulation of insulation and loop resistance
- Simulation of frequently occurring errors in protection and installation technology
- Measurement and simulation of the earth resistance
- Mains connection (3-phase):
- Mains voltage: 230/400 V AC
- Mains frequency: 50 - 60 Hz
- Plug connection: Cekon (CEE standard)
- Dimensions (W x H x D): 532 x 297 x 140 mm
- Weights: approx. 5.5 kg
Mechanical data:
The front panel of the training board is made of 5 mm thick laminate, color matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic hood protects the rear of the unit and its shape allows the unit to be placed at an ergonomically favourable angle on the table.
- Training board installation test
