Teaching System Basics of Electrical Engineering/Electronics
incl. USB-Oscilloscope and Messuring Interface

Item No.: 52806

Add to wish list

With the teaching system basics of Electrical Engineering/Electronics we offer a complete teaching and learning system for the fundamentals of electrical engineering, electronics and analog technology. Cover all topics of basic education in this field on one system. The teaching system has a function generator, various voltage sources and a large patch panel for setting up experiments. In addition, an USB-Oscilloscope and a measuring interface for measuring and visualizing the processes are included. The clear arrangement and the detailed experiment instructions ensure efficient learning.

Note: The matching experimental instructions must be ordered separately.

Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.

In addition to the power supplies required to carry out the experiments, the PC Electronic trainig board has a large plug-in field for setting up the experiments with pluggable components. When setting up a circuit, the individual sockets are connected via connecting plugs or connecting leads and via the pluggable components specified by the circuit. The plug-in panel is also suitable for connection lines with 4 mm safety plugs and rigid sleeves. Through the additional use of the measuring interface incl. visualisation software, the measured data can be easily displayed virtually on the PC monitor.

Universal teaching and learning system for the basics of electrical engineering, electronics and analogue technology.
With integrated direct, alternating and three-phase current source and function generator
Function generator, DC and three-phase current source are short-circuit-proof and monitored by LEDs
Via the integrated USB interface and the visualisation software, the output signals of the voltage sources can be set on the PC and simultaneously projected via a connected beamer (not included in the scope of delivery)
Clear arrangement of the accessories on the printed separate storage plate
Detailed experiment instructions with solution section (not included in the scope of delivery)

Can be used with or without PC support.

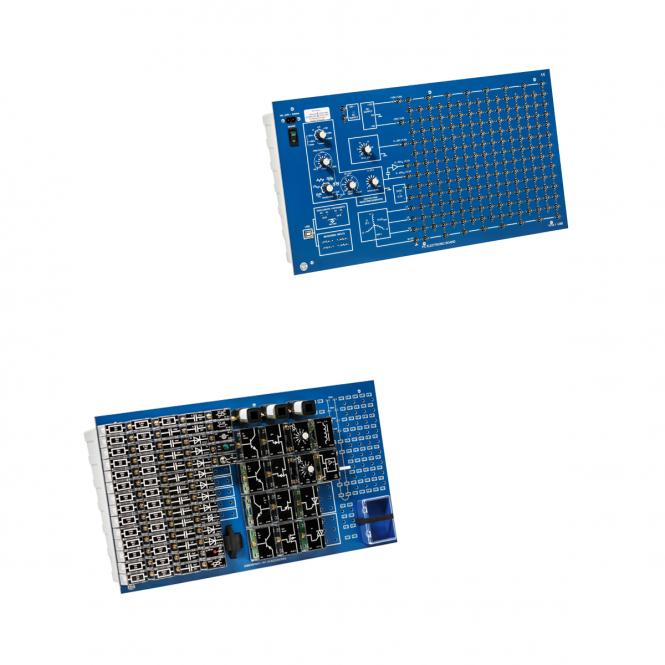

To carry out experiments, the PC Electronic Board is placed on the table or hung in an A4 experiment rack for demonstration purposes. A storage plate is available for storing the pluggable components. The front of the plate is printed with the circuit symbols corresponding to the components to be plugged in, thus allowing easy and clear storage. The PC Electronic Board is also available in a box (see "Matching this"). In the box version, the accessory set is mounted in the lid of the box. The individual electrical components are connected via 2- and 4-mm sockets.

Electronics technician for information and systems technology
Industrial electrician (appliance and systems)
Electronics technician
Electronics technician, industrial engineering
Electronics technician, devices and systems
Electronics technician for automation technology
Electronics technician for building and infrastructure systems
Electronics technician for machines and drive technology
Electronics technician for aeronautical systems
Mechatronics technician

With the teaching system Fundamentals of Electrical Engineering/Electronics we offer a universal teaching and learning system that is excellently suited for the following experimental groups:

Direct, alternating and three-phase current technology
Characteristic curves of diodes and transistors
Characteristic curves of thyristors and triacs
Amplifier circuits
Oscillator circuits
Modulators and Demodulators
Flip-flops
Power supply circuits
Switching voltage regulator and DC/DC converter
Circuits of power electronics

Mains connection:
Mains voltage: 230 V AC / 115 V AC (110 V AC)
Mains frequency: 50 ... 60 Hz; 40 VA
Power consumption: approx. 70 VA ...

Direct and alternating voltages

DC voltage:
+15 V (± 5 %); 800 mA
-15 V (± 5 %); 800 mA
+5 V; 100 mA
0 ... 25 V; 300 mA
AC voltage:
24 V AC; max. 100 mA

Function generator

Sine / square / triangle:
USS = 0 ... 20 V; 100 mA
f = 1 Hz ... 250 kHz
Ri = 60
Square wave, positive:
US = 5 V / TTL
PWM:
10 kHz; pulse width 0 ... 100 %
DC offset:
+12 V ... -12 V

Three-phase generator

Line voltage: 7 Vrms
Conductor voltage: 12 Vrms
Conductor current: max. 50 mA
Frequency: approx. 50 Hz The outputs of the function generator and the DC and three-phase source are short-circuit-proof and monitored by LEDs.
Dimensions (W x H x D): 532 x 297 x 120 mm
Weight: approx. 3.9 kg

Mechanical specifications:

The front panel of the training board is made of 5 mm thick laminate, colour matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and, due to its shape, allows the unit to be placed at an angle on the table in a way that is suitable for work.
