The electricLab 4 in 1 will be available from April 2025.
The easy acess to basic electronic knowledge. With the electricLab 4 in 1, you can teach the basics of direct current and alternating current technology, electronics and three-phase alternating current. Whether at school, vocational college or in company training, the electricLab 4 in 1 provides optimum support for everyday training. The electricLab 4 in 1 works with safety extra-low voltage. Insulated plug contacts provide a high level of protection against accidental contact. Further safety measures include an electronic overcurrent fuse and a thermal overcurrent fuse. These safety measures make the electricLab 4 in 1 ideal for beginners. Thanks to the clear arrangement of the plug-in elements, completeness can be checked at a glance. The function generator on the left-hand side provides a DC voltage, AC voltage and three-phase AC voltage. The power supply values entered are shown on the display.

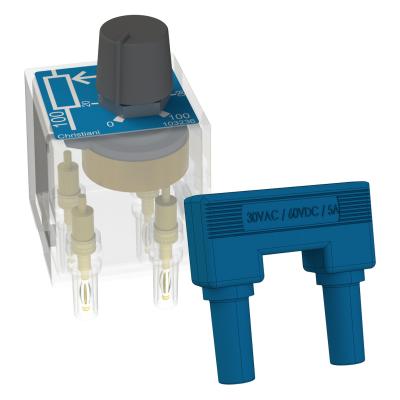

The experiment slides can be used to work on 61 ready-made tasks on various topics. The experiments are pre-wired and safe to operate. Only the required sockets are exposed by applying the respective test slides. This gives learners a quick overview, which means that the experiments can be set up in a short space of time. Time-consuming test trials and set-up times are eliminated. The didactic preparation of the experiments and the experiment slides creates an identity between the circuit diagram and the circuit, or in other words, a functioning circuit diagram is created. You can also design your own tasks and circuits using the universal experiment slides. A QR code takes you quickly and easily to the appropriate didactics. Whether individual work or group work, the electricLab 4 in 1 can be flexibly adapted to your lessons. The tasks become more complex during the learning process, increasing the demands on the learners. In conjunction with the solutions, the electricLab provides you with ideal support in everyday training.

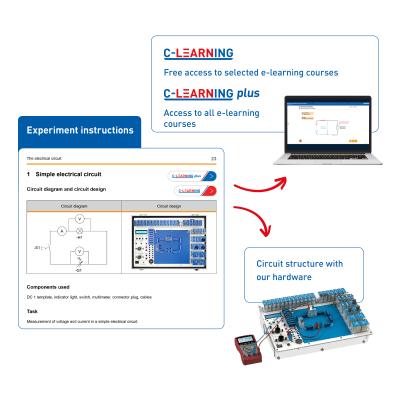

Experiment instructions
In addition to the hardware, you will receive digital access to the documents. The documents are initially provided in German, later also in English, Spanish and Chinese. The documents for the learners are working documents which are processed by the learners, the document for the learning guide also contains the solutions.
Direct current technology
As an introduction, we start with the simplest basic terms and circuits: Electrical voltage source - switch - consumer. The course continues with Ohm's law, the series and parallel connection of resistors, the unloaded and loaded voltage divider and the bridge circuit. After examining the temperature dependence of resistors and the behaviour of capacitors in a DC circuit, the simplest semiconductor components are covered. The basic properties of diodes and transistors are shown by way of example in the DC circuit.
- You will receive 18 trials
Alternating current technology
Alternating current technology is taught starting with the basic elements R, C and L. After looking at the behaviour in the AC circuit, the various series and parallel circuits are presented in an understandable way using oscillograms and pointer diagrams. Finally, simple filter circuits such as high-pass and low-pass are analysed.
- You will receive 17 trials
Electronics
In the electronics section, the characteristic curves of electronic components are first recorded and analysed. This is followed by the simplest basic circuits, such as rectifier, stabilisation and amplifier circuits. The last part of the didactics deals with advanced analogue electronics, in particular the various operational amplifier circuits.
- You will receive 19 trials
Three-phase alternating current
Three-phase alternating current is taught using delta and star circuits. Both circuits are set up with balanced and unbalanced loads and measurements of the currents and voltages are taken in the individual cases.
- You will receive 7 trials
In conjunction with our C-LEARNING plus, you also benefit from additional content. Learners have the opportunity to look at further content on the individual topics at thematically appropriate points.
electricLab 4 in 1 – Mobile

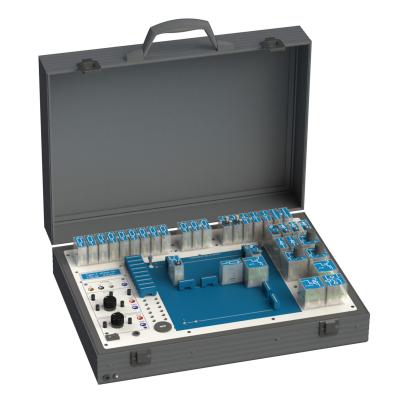

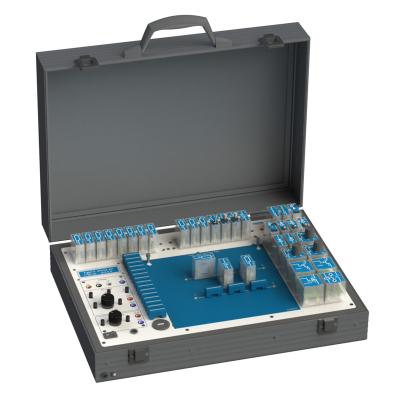

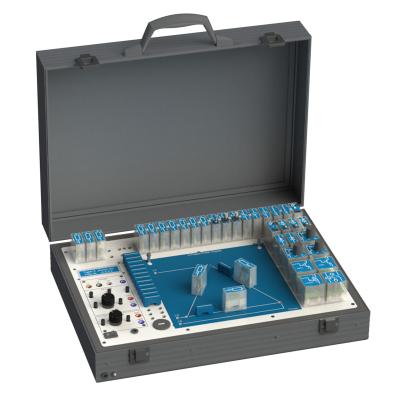

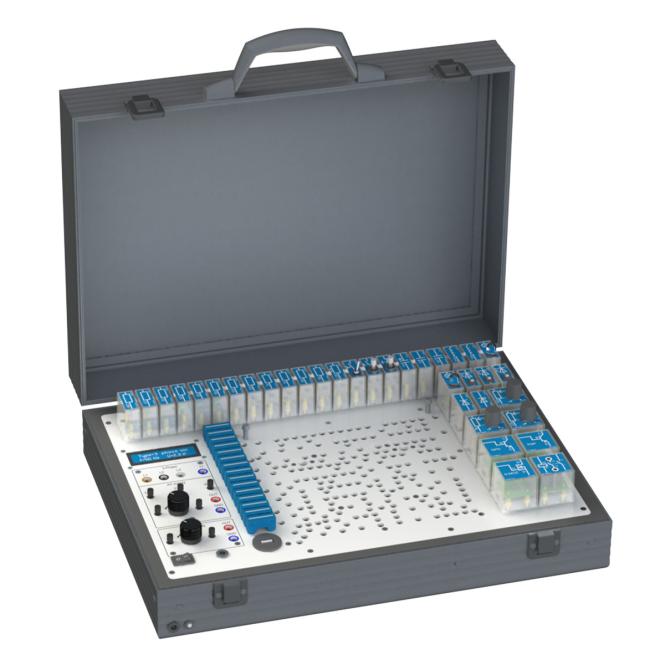

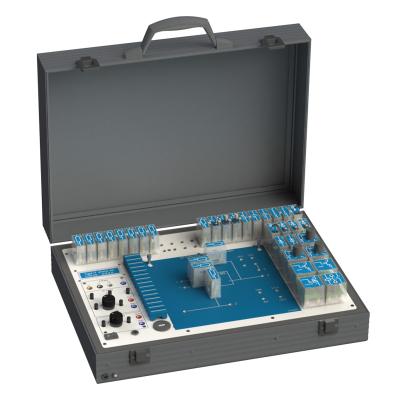

The electricLab 4 in 1 is available in two versions, as a training board or mobile. The electricLab 4 in 1 - Mobile has a rechargeable battery and can therefore be used anywhere. The accessories can be stored in the case.
- Electronics technician
- Mechatronics technician
- Mechanics
- Metal worker
- Industrial electrician
An overview of the learning objectives in the field of direct current technology:
- Set up and understand a simple electrical circuit
- Get to know, understand and apply Ohm's law
- Set up, calculate and measure series and parallel circuits of resistors
- Set up and analyse unloaded/loaded voltage divider
- Combining capacitors into series and parallel circuits
- Set up and understand latching circuits with relays
- Measuring and analysing the charging and discharging process of a capacitor
- Analysing and measuring non-linear resistors
- Analyse and understand semiconductor components such as diodes and transistors
An overview of the learning objectives in the area of alternating current technology:
- Familiarise yourself with resistor, capacitor and inductance in an AC circuit
- Calculate and measure the active power of a resistor on alternating voltage
- Calculate the reactance and reactive power of capacitors and inductors
- Analyse the behaviour of capacitors and inductors on square-wave AC voltage
- Set up, measure and understand RC, RL and RCL series and parallel circuits
The learning objectives in the field of electronics at a glance:
- Record and analyse characteristic curves of electronic components
- Set up and measure single-pulse and bridge rectifier circuits
- Use and understand transistors as controllable resistors and as amplifiers
- Set up and understand stabilisation circuits with Zener diodes and transistors
- Set up and evaluate push-pull amplifier output stage
- Understanding and applying basic operational amplifier circuits
An overview of the learning objectives in the area of three-phase alternating current:
- Three-phase current generation
- Star connection with symmetrical and asymmetrical load
- Delta connection
- electricLab 4 in 1 - Mobile
- Experimental templates
- All required plug-in elements, bridges and cables
- Plug-in power supply
- Didactics (online)
- Voltage sources:
- DC: 0 – 6 V adjustable
- AC: Function generator with sine, square and triangle voltage up to 100 kHz, amplitude adjustable up to ±5 V
- 3 Phasen: Sine 0.1 - 99 Hz, amplitude adjustable up to ±5 V
- All areas have an electronic overcurrent fuse and a thermal overcurrent fuse (200 mA)
- Rechargeable battery (NiMH), 9.6 V and 2300 mAh (built-in)
- Dimensions: B= 450 mm, H= 360 mm, T= 130 mm
