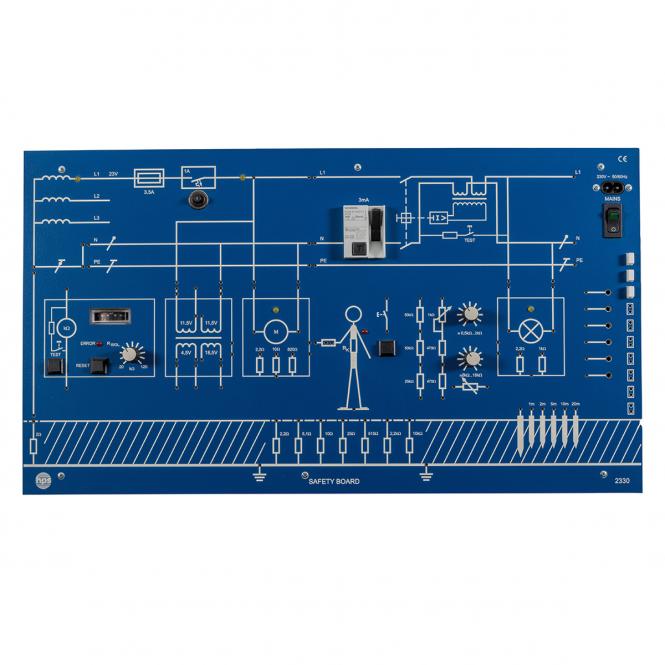

With the training board for electrical safety measures, incl. accessories, we offer you a training system that is excellently suited for carrying out experiments in this field. It can also be used to teach all protective measures according to DIN VDE 0100. A basic subject area for most electrical professions. The unit can be used in any room without special installation, as all experiments are carried out with protective extra-low voltage and the unit only requires single-phase mains supply. The functionality of the most important assemblies is indicated visually by LEDs.
- All important protective measures according to VDE 0100 in one board
- Built-in power supply, single-phase socket is sufficient
- Optimum safety for the user due to protective extra-low voltage
- Short set-up time, as all accessories are directly integrated in the unit
- TT mains, TN-C-S mains, IT mains possible by reconnection
Note: The matching experimental instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration.
- Electronics technician for automation technology
- Electronics technician for operating technology
- Electronics technician for machines and drive technology
- Electronics technician for building and infrastructure systems
- Mechatronics technician
- Industrial electrician
- Electrical installation technician
- Protection against direct and indirect contact
- Protection by protective low voltage
- RCD residual current device
- Overcurrent protection devices
- Summation current transformer
- Autotransformer
- Protective measures in the TN network
- Protective measures in the TT-Net
- Measuring the grounding resistance
- Protective measures in the IT network
- Protective Insulation
- Protective separation
- Grounding
- Mains connection
- Mains voltage: 230 V AC / 115 V AC (110 V AC); 50 ... 60 Hz; 40 VA
- L1'=23 V; 1.5 A ≙ 1/10 of the mains voltage; for safe experimentation
- RCD circuit-breaker
- 1-phase; with test button; IF = 30 mA
- Insulation monitor
- with test and reset button; adjustable earthing resistance: 20 kΩ ... 120 kΩ
- Human symbol
- with pluggable body resistance: 2.4 kΩ and 820 Ω
- Fuse
- for free use up to 2 A; can be connected via 2-mm sockets.
- Consumer motor
- Body fuses can be simulated by switchable resistors: 2.2 Ω; 10 Ω; 820 Ω
- Lamp consumer
- Body closures can be simulated by switchable resistors: 2.2 Ω; 1 kΩ
- Transformer
- The transformer can be used as an extra-low voltage transformer, autotransformer, isolating transformer and as a summation current transformer.
- Earth electrode, auxiliary earth electrode
- With the measuring points for voltage line measurement at 1/2/5/10/20 m.
- Dimensions (W x H x D): 532 x 297 x 110 mm
- Weight: approx. 4.5 kg
Mechanical specifications:
The front panel of the training board is made of 5 mm thick laminate, colour matt blue, and is engraved with white switching symbols, corresponding to the built-in functional groups. A sturdy plastic cover protects the rear of the unit and, due to its shape, allows the unit to be placed at an angle on the table in a way that is suitable for work.
- Training board Electrical Safety
- Cable set
