The Electric Installation Training Board is a training concept with which the basic circuits of installation technology can be set up and examined. Troubleshooting is of particular importance here. Faults can be simulated via a control panel.
- Incl. accessories
- The most important basic circuits of installation technology on one board
- Practical experiments through direct use of the mains voltage
- With built-in fault simulation
- No special laboratory tables required, 230 V socket is sufficient
Note: The matching experiment instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
Built-in components:
- 1 distribution panel
- 2 changeover switches
- 2 buttons
- 1 cross switch
- 1 dimmer (200 W), combined with pressure switch
- 1 grounding contact socket
- 1 remote switch
- 1 motion detector - detection range: 120°, adjustable time: 5 - 300 s, twilight: 5 - 1000 lux
- 1 time switch, 3- and 4-wire, adjustable time: 1-10 min
- 1 bulb, for free wiring
- 1 switch field for error simulation (lockable)
All inputs and outputs are connected via safety sockets (4mm).
Recommended measuring and test equipment:
- Multimeter (standard)
To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration.
- Electronics technician
- Electronics technician, industrial engineering
- Electronics technician for devices and systems
- Electronics technician for buildings and infrastructure systems
- Electronics technician, energy and building services engineering
- Electrical systems technician
- Industrial electrician
- Electronics technician for machines and drive technology
- Electronics technician for aeronautical systems
- Disconnection
- Alternate switching
- Cross circuit
- Impulse circuit
- Staircase light circuit
- Dimmer circuit
- Outdoor light with motion detector
- Fault simulation
- Troubleshooting
- Mains connection (with earth contact):
- Mains voltage: 220 - 240 V AC
- Mains frequency: 50 - 60 Hz
- Power consumption: 30 VA
- Dimensions (W x H x D): 532 x 297 x 130 mm
- Weights: approx. 3 kg
Mechanical specifications:

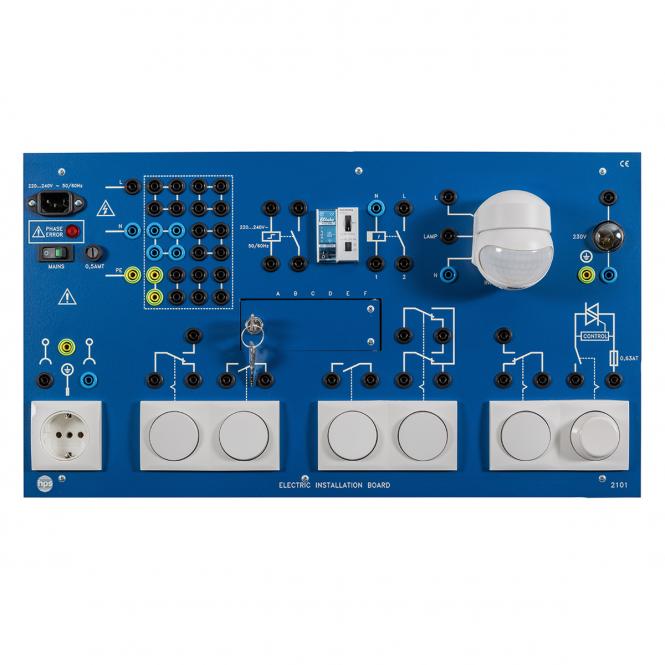

The front panel of the BOARD is made of 5 mm thick laminate, color matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and its shape allows the unit to be placed at an ergonomically favourable angle on the table.
- Training board Electric Installation
- Cable set
