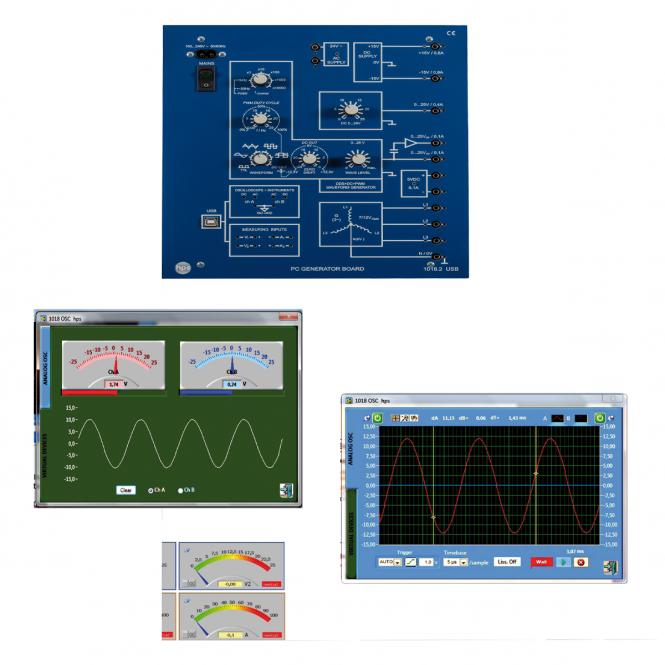

With the training board PC Generator incl. USB Oscilloscope you can teach the basics of electrical engineering and electronics. The PC Generator Board has a function generator and various voltage sources. The plug-in panel for setting up the experiments is located on a separate board. The clear arrangement and the detailed experiment instructions ensure efficient learning. In addition, a USB oscilloscope and a measuring interface are added for measuring and visualising the processes.
Note: The matching experimental instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
The training board PC generator has the power supplies needed to carry out the experiments. The plug-in panel for setting up the experiments is located on a separate board. With the appropriate accessories, the PC Generator Board is a universal teaching and learning system. When setting up a circuit, the individual sockets are connected via connecting plugs or connecting leads and via the pluggable components specified by the circuit. With the additional use of the measuring interface incl. visualisation software, the measured data can easily be displayed virtually on the PC monitor.
- With integrated DC, AC and three-phase current source as well as function generator
- Function generator, DC and three-phase current source are short-circuit-proof and monitored by LEDs
- Via the integrated USB interface and the visualisation software, the output signals of the voltage sources can be set on the PC and simultaneously projected via a connected beamer (not included in the scope of delivery)
- By using the measuring interface incl. measuring software, two current and two voltage inputs are available
- By using the USB oscilloscope, it is possible to display signals in the time and frequency domain.
- Measurement software and USB oscilloscope included
- Detailed experiment instructions with solution part (not included)
Can be used with or without PC support. To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration purposes. The individual electrical components are wired via 2- and 4-mm sockets.
- Electronics technician
- Electronics technician for devices and systems
- Electronics technician for information and systems technology
- Industrial electrician for devices and systems
- Electronics technician for industrial engineering
- Electronics technician for automation technology
- Building and infrastructure systems electronics technician
- Electronics technician for machines and drive technology
- Electronics technician for aeronautical systems
- Mechatronics technician
- Direct, alternating and three-phase current technology
- Characteristic curves of diodes and transistors
- Characteristic curves of thyristors and triacs
- Amplifier circuits
- Oscillator circuits
- Modulators and Demodulators
- Flip-flops
- Power supply circuits
- Switching voltage regulator and DC/DC converter
- Circuits of power electronics
- Mains connection:
- Mains voltage: 230 V AC / 115 V AC (110 V AC)
- Mains frequency: 50 ... 60 Hz
- Power consumption: approx. 70 VA
- Direct and alternating voltages:
- DC voltage: +15 V (± 5 %); 800 mA
- -15 V (± 5 %); 800 mA
- + 5 V; 100 mA
- 0 - 25 V; 300 mA
- AC voltage: 24 V AC; max. 100 mA
- Function generator:
- Sine / rectangle / triangle: USS = 0 ... 20 V; 100 mA
- f = 1 Hz ... 250 kHz
- Ri = 60
- Rectangle, positive: US = 5 V / TTL
- PWM: 10 kHz; pulse width 0 ... 100 %
- DC offset: +12 V ... -12 V
- Three-phase alternator:
- String voltage: 7 Veff
- Conductor voltage: 12 Veff
- Conductor current: max. 50 mA
- Frequency: approx. 50 Hz The outputs of the function generator as well as the DC and three-phase source are short-circuit proof and monitored by LEDs.
- Dimensions (W x H x D): 266 x 297 x 120 mm
- Weights: approx. 2.8 kg
Mechanical specifications:
The front panel of the training board is made of 5 mm thick laminate, color matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and its shape allows the unit to be placed at an ergonomically favourable angle on the table.
- Training board PC Generator
- Measuring interface incl. USB visualization software
- 2-channel USB oscilloscope, including software
