With the Electric training board, we offer you a universal teaching and learning tool that is excellently suited for carrying out basic experiments in direct and alternating current technology. It is used especially for training in the industrial metal professions.
- Universal teaching and learning system for metal trades
- With integrated direct and alternating current source
- All functions short-circuit-proof and monitored by indicator lights
- Clearly arranged storage of accessories directly on the basic unit
- Detailed experiment instructions with solution section
- Components protected against faulty wiring
Note: The matching experiment instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.

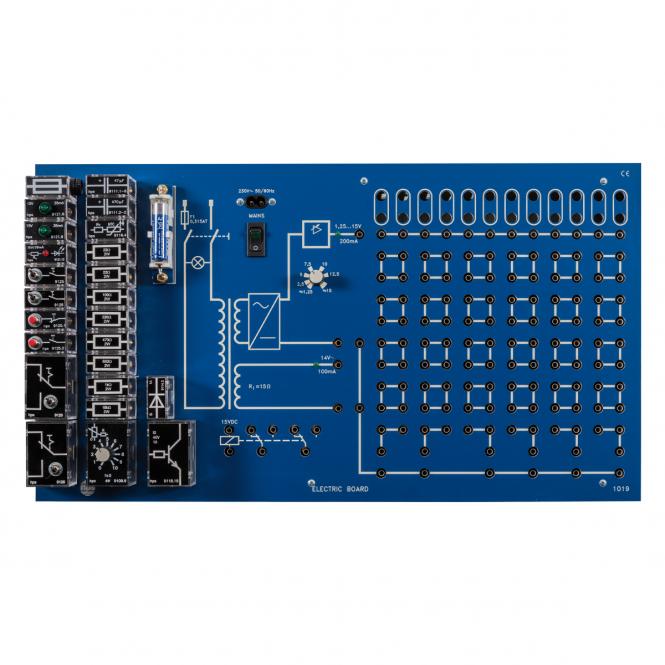

The Electric training board has an adjustable DC and AC voltage source. Both voltage sources are overload-proof and short-circuit-proof. Their functions are indicated by LEDs. Experiments are set up with pluggable components. For this purpose, there is a clear plug-in field on the front panel of the Electric Board with 4 mm safety sockets arranged in a 19 mm grid. Four sockets each form a group. The sockets of a group are electrically conductively connected to each other ( marked by white engraving). The connection is made via connecting plugs and / or connecting cables. By arranging the sockets in this way, a circuit can be set up quickly and safely according to the specified circuit diagram without any time-consuming familiarisation.
- Universal teaching and learning system for metal professions
- With integrated direct and alternating current source
- All functions short-circuit-proof and monitored by indicator lights
- Clear storage of accessories directly on the basic unit
- Components protected against faulty wiring
- Clear arrangement of accessories on the left side of the Electric Board
- Detailed experiment instructions with solution part (not included in the scope of delivery)
To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration. The training board is also available in a box (see "Matching this").
- Metal professions
- Mechatronics engineer
- Electronics engineer for industrial engineering
- Electronics engineer for devices and systems
- The electric circuit
- The ohmic law
- Electrical measuring instruments
- Electrical power
- Electrical resistors
- Series connection of resistors
- Parallel connection of resistors
- Voltage divider
- Mixed electrical circuits
- Electrical fuse
Lamp circuits:
- Relay Circuits
- Series connection of voltage sources
- Parallel connection of voltage sources
- Capacitor
- Diode
- Light emitting diode
- Transistor as switch
- Half-wave rectifier
- Logic circuits
- Mains connection:
- Mains voltage: 230 V AC / 115 V AC (110 V AC)
- Mains frequency: 50 - 60 Hz
- Power consumption: approx. 40 VA
- DC and AC voltage available on the board:
- Direct voltage and current: 1.25 - 15 V; 0.2 A
- Sine voltage and current: 14 V (rms); 0.1 A
The outputs of both voltage sources are short-circuit proof and are monitored by LEDs.
- Dimensions (W x H x D): 532 x 297 x 120 mm
- Weights: approx. 4.0 kg
- Relay:
- Contacts: 2 changeover switches
- Contact rating: max. 1 A
- Operating voltage: 15 V DC
The pluggable components are wired via 4 mm safety sockets with 4 mm plugs or connecting leads.
Mechanical specifications:
The front panel of the training board is made of 5 mm thick laminate, color matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and its shape allows the unit to be placed at an ergonomically favourable angle on the table.
- Training board Electric
