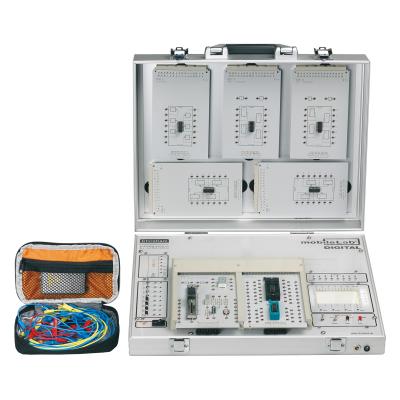

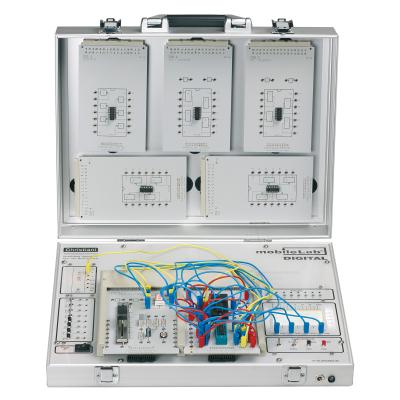

Digital case
With the digital case, you can teach the basics of digital technology in clear experiments. Starting with the basics of logic operations, the basic elements of digital technology are easy to understand. Building on the basic elements, combinations and the function of more complex circuits are then constructed and analysed.

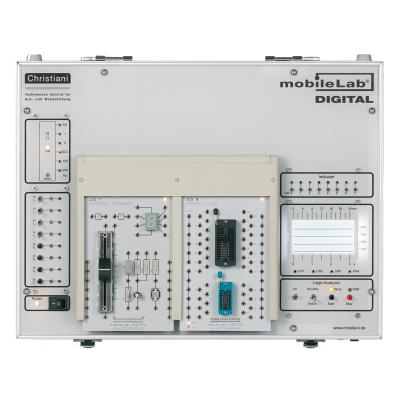

The digital case includes a logic analyser with backlighting, which can be used to visualise all the signals of the digital circuits. This enables the learner to analyse and understand the functions of the digital circuits even during fast processes. The system can be updated easily and cost-effectively in the event of further developments in semiconductor technology thanks to the interchangeable test circuit boards. The universal circuit boards can also be used to realise further experiments with your own semiconductor components.

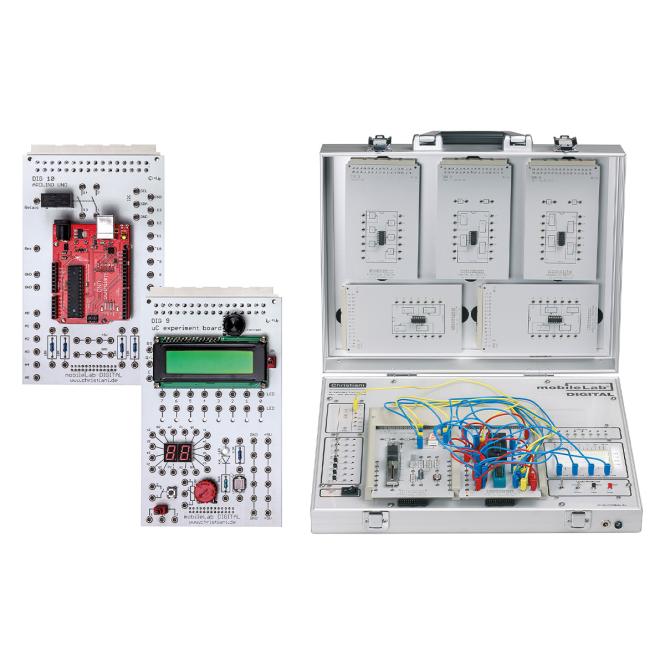

Microcontroller add-on kit
The microcontroller technology add-on kit uses a microcontroller board that is based on the widely used Arduino Uno development platform and is fully compatible with it.
These experimental circuit boards can be used on the mobileLab digital case. They are an ideal extension to the digital technology basics, teaching the transition from discrete digital circuits to programmed logic with simple experiments. For example, the basic logic operations are first realised as programmed functions. Building on these basic elements, more complex programmes with time functions and sequence controls are then developed. The experimental circuit boards are supplied with 5 V DC from the mobileLab carrier system. The microcontroller board is connected to a PC via a USB cable. The 2 mm laboratory cables supplied with the mobileLab digital case are used to set up the experimental circuits.
The separately available experiment instructions contain numerous programme examples and tasks for self-programming. The instructor's booklet contains the sample solutions for the tasks in the experiment instructions. You will also receive access to download the sample solutions as files. This allows you to simply load the programmes onto the microcontroller and test whether your circuit setup works correctly.
Note: The corresponding documents are available under ‘Documents’ and are not included in the scope of delivery.
mobileLab® is suitable for use in both in-company training and school lessons. Due to its occupation-neutral orientation, the system is ideal for vocational schools or training centres, as a large number of expensive occupation-specific specialist room equipment can be dispensed with. Learning objects and the context can also be used to impart in-depth specialised knowledge.
Professions that require basic electrical engineering training:
| Profession | Learning field | Profession | Learning Field |
|---|---|---|---|
| Electronics technician | 1,3,5,6 and 7 | Car body and vehicle construction mechanic | 3 and 4 |
| Electronics technician for automation and systems technology | 1,3 and 5 | Motor vehicle service mechanic | 3 and 4 |
| Electronics technician for operating technology | 1,3,5 and 6 | Motor vehicle mechanic | 3 and 4 |
| Electronics technician for building and infrastructure systems | 1,3 and 5 | Mechanic for car body maintenance technology | 3 and 4 |
| Electronics technician for devices and systems | 1,2,3,5,6 and 7 | Mechanic for agricultural and construction machinery technology | 3 and 4 |
| Electronics technician for aeronautical systems | 1,2 and 3 | Mechanic for tyres and vulcanisation technology | 3 and 4 |
| Electronics technician for machines and drive technology | 1,3 and 5 | Metal worker | 4 |
| Information electronics technician | 1 | Roller shutter and sun protection mechatronics technician | 4 |
| Electronics technician for building systems integration | 1 and 2 | Watchmaker | 4 and 8 |
| Systems computer scientist | 1 and 3 | Toolmaker | 3 and 4 |
| Plant mechanic | 3 and 4 | Cutting machine operator | 4 |
| Plant mechanic for sanitary, heating and air conditioning technology | 3 and 4 | Two-wheel mechanic | 3 and 4 |
| Railwayman/-woman in operational service | 4 | BGJ, vocational field of chemistry, physics and biology | 3 |
| Specialist for event technology | 1,3 and 5 | BGJ, vocational field of electrical engineering | 1,2 and 3 |
| Bicycle fitter | 3 and 4 | BGJ, vocational field of automotive engineering | 3 and 4 |
| Precision mechanic | 8 | BGJ, vocational field of metal technology | |
| Industrial mechanic | 4 |
DIGITAL case, the learner should be able to understand and analyse the basic elements and circuits of digital technology:
The learning objectives from the Fundamentals of Digital Technology at a glance:
- Understand functional equations of basic elements of digital technology
- Get to know the circuit symbols of the basic elements
- Get to know the functional diagrams of the basic elements
- Create and understand function diagrams of combinations of basic elements
- Create and understand wiring diagrams based on function diagrams
- Understand and use function tables of digital circuits
- Understand and create signal-time diagrams
Basic elements and circuits of digital technology:
Connecting, measuring and analysing basic elements:
- Getting to know and analysing inverters and buffers
- Analysing and understanding the AND element
- Analysing and understanding the OR element
Set up, connect, measure and analyse combinations of the basic elements:
- Connecting and analysing AND with inverter
- Connecting and analysing OR with inverter
- Analysing and understanding NAND
- Analysing and understanding NOR
- Setting up, analysing and understanding flip-flops
Topics of the digital technology extension 2:
- Schmitt trigger
- Monostable multivibrator
- Time delay circuit
- J-K flip-flop
- Shift register
- Ring register
- 7-segment display
- Counter with 7-segment display
- 8-bit analogue-to-digital converter
- Differential bus transceiver
Digital case
- Battery-powered training case for digital technology
- 4-channel logic analyser
- Overload-proof fixed voltage source

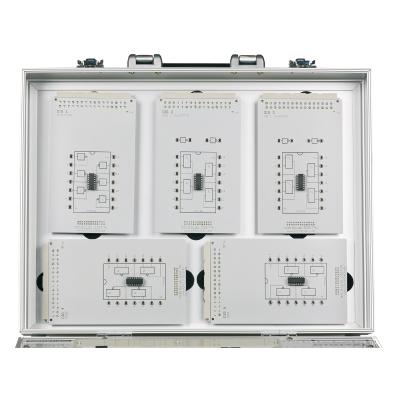

- 5 experimental circuit boards
- 1 universal test circuit board with quick-change sockets
- All required connecting cables
- Separate plug-in power supply for charging and operating the case without charging cabinet
Supplementary microcontroller set

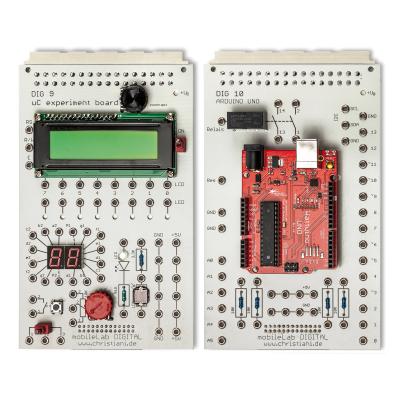

- DIG 9 ARDUINO Experiment Board
- DIG 10 ARDUINO UNO Board
- Wattuino UNO special version
- USB cable A/B
Digital case
- Rechargeable battery (NiMH), 7.2 V and 2000 mAh (built-in)

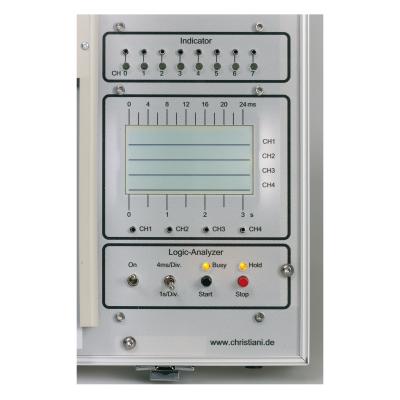

- Integrated 4-channel logic analyser with switchable time deflection 4ms/DIV and 1s/DIV and backlighting
- Overload-proof fixed voltage source: 5V DC, current limit 200mA
- Plug-in power supply: Input: 100-240 V/ 50-60 Hz Output: 15 V DC, 1.2 A
- Dimensions: W=410 mm, H=110 mm, D=335 mm
- Weight: 3.9 kg
Microcontroller add-on kit
- Power supply: 5 V DC from the carrier system
- Data connection: USB socket type B
- Connections on the test circuit boards: 2 mm laboratory sockets
