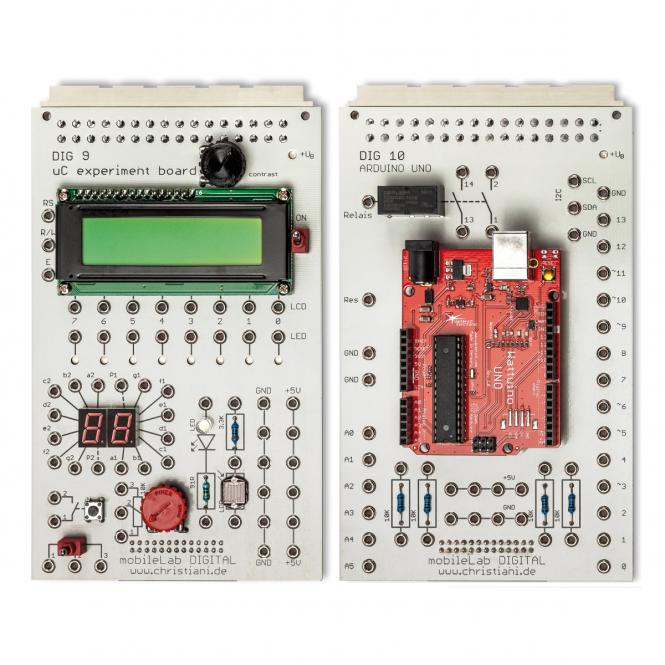

The microcontroller technology add-on kit uses a microcontroller board that is based on and fully compatible with the widely used Arduino Uno development platform.
These experimental circuit boards can be used on the mobileLab Digital case. They are an ideal extension to the digital technology basics, using simple experiments to teach the transition from discretely constructed digital circuits to programmed logic. For example, the basic logic connections are first realised as programmed functions. Building on these basic elements, more complex programmes with time functions and sequence controls are then developed.
The experimental circuit boards are supplied with 5 V DC from the mobileLab carrier system. The microcontroller board is connected to a PC via a USB cable.
The 2 mm laboratory cables included in the scope of delivery of the mobileLab digital case are used to set up experimental circuits.
The experiment manual, which is available separately, contains numerous programming examples and tasks for programming yourself.
The instructor's booklet contains the sample solutions for the tasks from the experiment instructions. In addition, you will receive access to download the sample solutions as files. This way you can simply load the programs onto the microcontroller and test whether your circuit design works correctly.
